Pioneer600 Raspberry Pi Expansion Board includes miscellaneous components, all on a single piece of hardware. It supports Raspberry Pi A+, Raspberry Pi B+, Raspberry Pi 2 Model B, and Raspberry Pi 3 Model B. Pioneer600 offers a standard I/O interface over various components and offers more GPIO possibility with the PCF8591.
With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor. ZunXshop
With Pioneer you can control your Raspberry Pi through a serial terminal exploiting the onboard CP2102 and interface 0.96-inch OLED display just like a walk in the park. Some of the other peripheral features are high precision RTC DS3231, AD/DA PCF8591 with 8-bit resolution, LFN0038K IR receiver, and BMP180 Pressure/temperature sensor. ZunXshop
Key features
- Supports Raspberry Pi A+ / B+ / 2B / 3B
- Dual LED, Joystick, Buzzer, The Basic Components
- CP2102 To Control The Pi Through A Serial Terminal
- 0.96inch OLED, A Big World In The Little Screen
- DS3231, High Precision RTC, Backup Battery Holder Is Also Available
- PCF8591 AD/DA, 8-Bit Resolution, Screw Terminal IO Interface
- More GPIO Possibility With PCF8574
- LFN0038K IR Receiver, A Remote Control Your Raspberry Pi
- BMP180 To Measuring Air Pressure And Temperature
- One Wire Interface For Connecting 1-WIRE Devices, DS18B20 Is Included
- Sensor Interface For Connecting Various Sensors
General Specification | |
---|---|
Screen-Type | OLED |
Screen-Diagonal | 0.96" |
Screen Resolution | 128×64 px |
Length (mm) | 60 |
Width (mm) | 56 |
Height (mm) | 15 |
Weight (gm) | 100 |
Shipment Weight | 0.116 kg |
Shipment Dimensions | 7 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Raspberry Pi Expansion Board, Miscellaneous Components, All-In-One

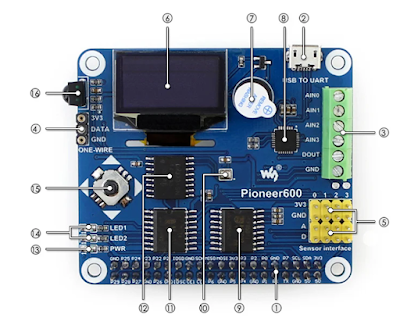

What’s on the Pioneer600:
- Raspberry Pi GPIO interface: for connecting Raspberry Pi
- USB TO UART: control the Pi through a serial terminal
- AD/DA IO interface: screw terminal
- 1-WIRE interface: for connecting 1-WIRE devices like DS18B20
- Sensor interface: for connecting various sensors
- 0.96inch OLED: SSD1306 driver, 128×64 resolution, SPI interface
- Buzzer
- CP2102: USB TO UART converter
- PCF8591 : 8-bit AD/DA converter, I2C interface
- BMP280: pressure sensor, I2C interface
- PCF8574: I/O expansion chip, I2C interface
- DS3231: high precision RTC chip, I2C interface
- Power indicator
- User LED
- Joystick
- LFN0038K IR receiver
Package includes:
1 x Raspberry Pi 3 Robot Shield Expansion Board Pioneer 600
1 x USB A to Micro USB Cable
1 x Screw set
